Product Parameters | |
Input voltage (optional): 3.3V-5V DC | Maximum switching frequency: 2000 times/second |
12V-24VDC | PWM maximum frequency: 500 times/second |
Output voltage: 12V-24VDC | Surge voltage: 60V |
Input point trigger current: 8-12MA | Isolation method: Optoelectronic isolation |
Output point rated current: 2A (long term) | Isolation voltage: 3000V |
Output point maximum current: 5A (short term) | Input signal type: NPN/PNP universal |
Maximum surge current: 49A | Flame retardant grade: UL94V_0 |

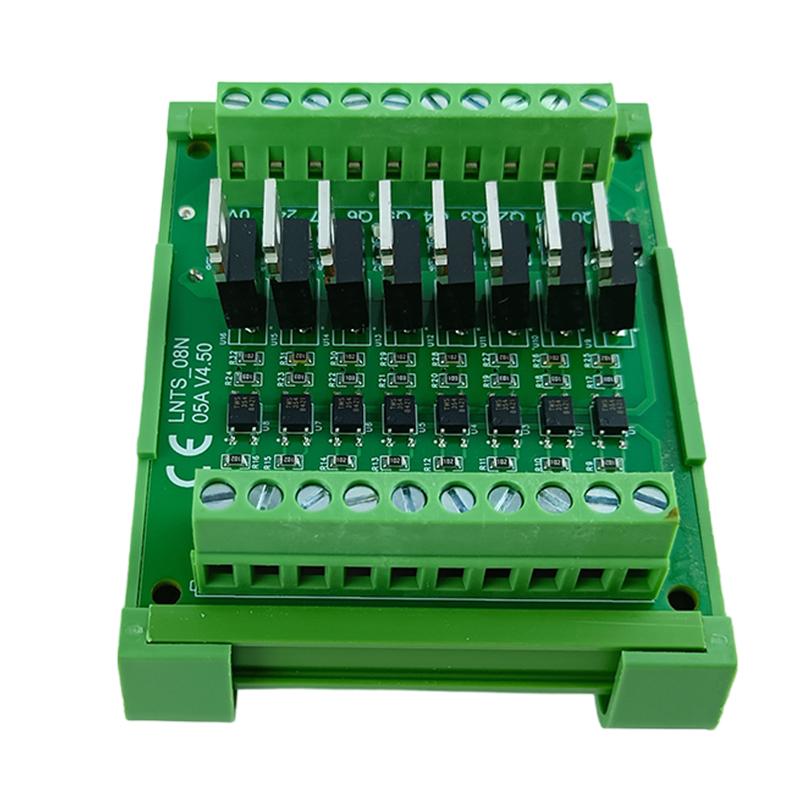

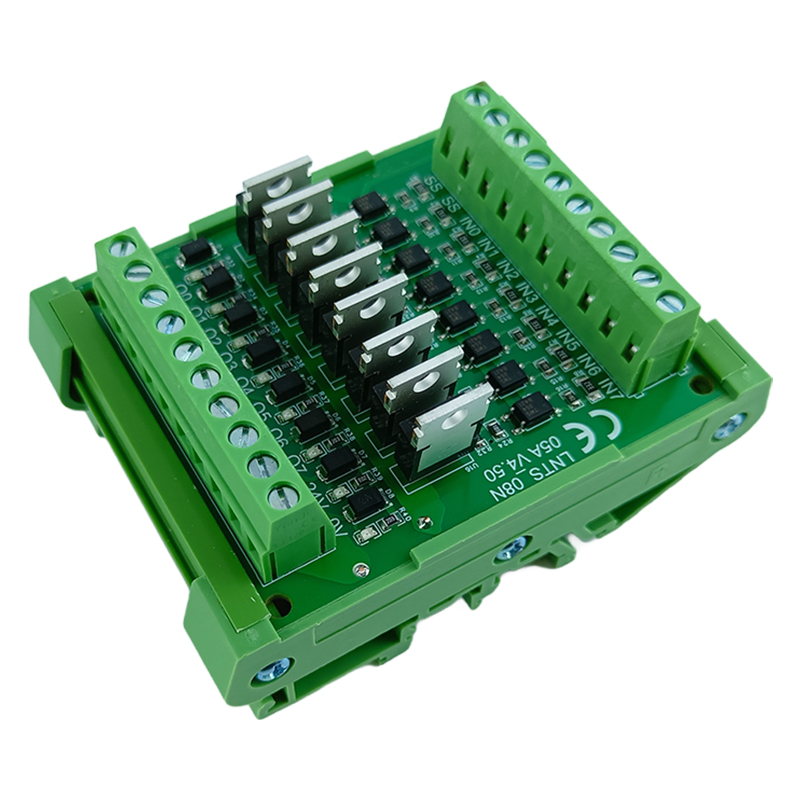

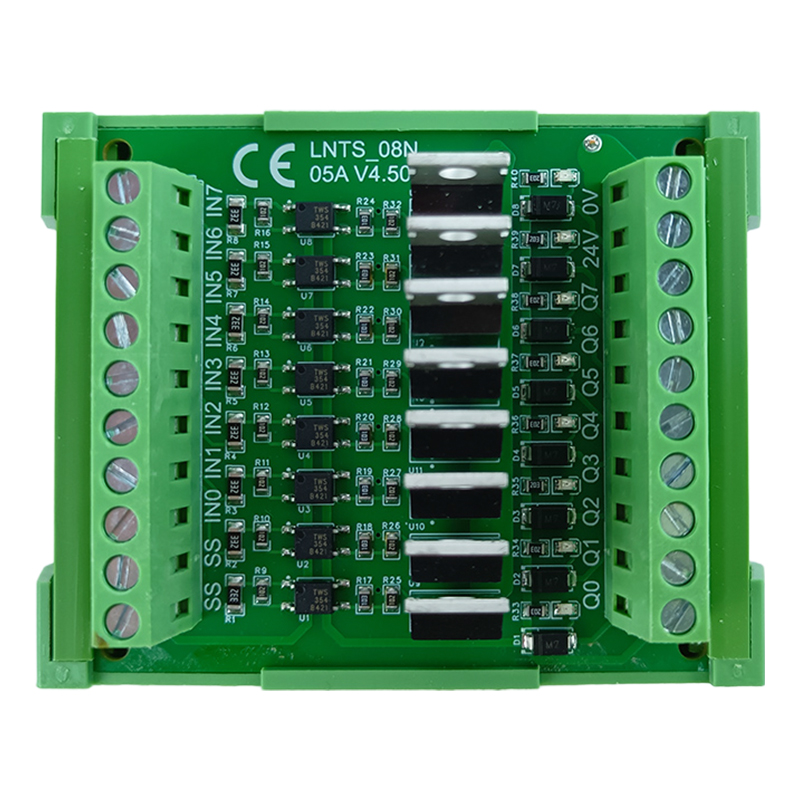

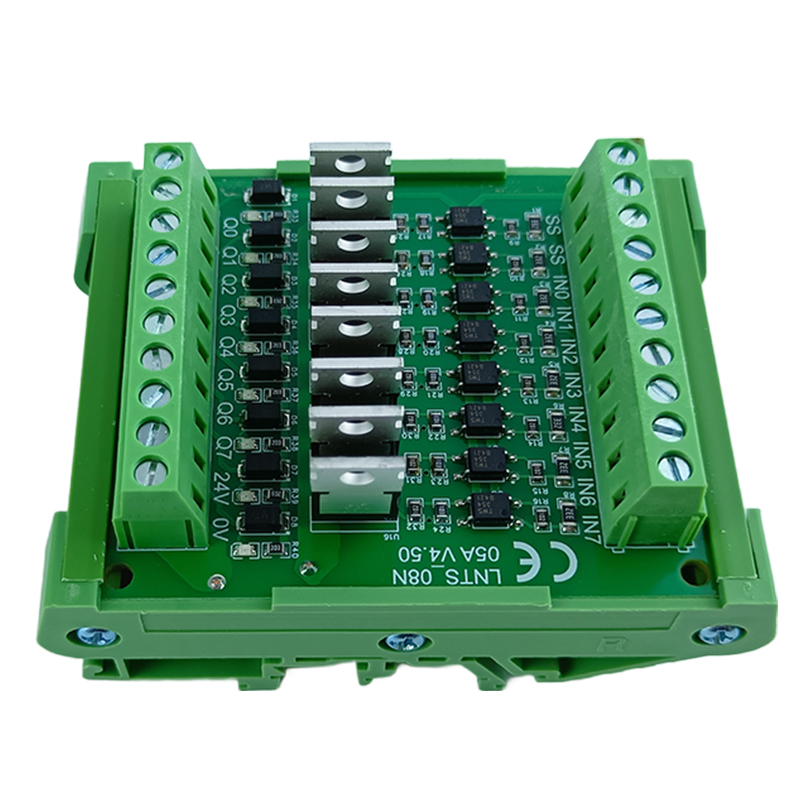

NPN output series DC amplifier board size | ||||
Specification | model | Length mm | Width mm | Height mm |
4th Road | LNTS-04N | 39 | 89 | 50 |
6th Road | LNTS-06N | 49 | ||
8th Road | LNTS-08N | 67 | ||
10th Road | LNTS-10N | 67 | ||
12th Road | LNTS-12N | 95 | ||
14th Road | LNTS-14N | 112 | ||
16th Road | LNTS-16N | 129 | ||
20th Road | LNTS-20N | 129 | ||
