Product Parameters |
Input voltage (optional): 3.3-5V DC |
Output voltage (DC negative voltage): 12-24V DC 12-24V DC |
Input point trigger current 8-12mA |
Single output point rated current: 2A (long time) |
Single output maximum current: 5A (short time) |
Single maximum surge current: 49A |
Surge current: 60V |
Maximum switching frequency: 2000 times/second |
PWM maximum frequency: 500 times/second |
Isolation voltage: 3000V |
Isolation mode: Optoelectronic isolation |
Input signal type; NPN/PNP universal |
Flame retardant grade: UL94V_0 |
Order number and technical specifications | ||||||
model | size | aisle | Input voltage | Output voltage | Single current | Total current |
LNTS-04P | 39*89*50 | 4 | DC3.3-5V/DC12V-24V | DC12V-24V | 2A(MAX-5A) | 8A |
LNTS-06P | 49*89*50 | 6 | DC3.3-5V/DC12V-24V | DC12V-24V | 2A(MAX-5A) | 10A |

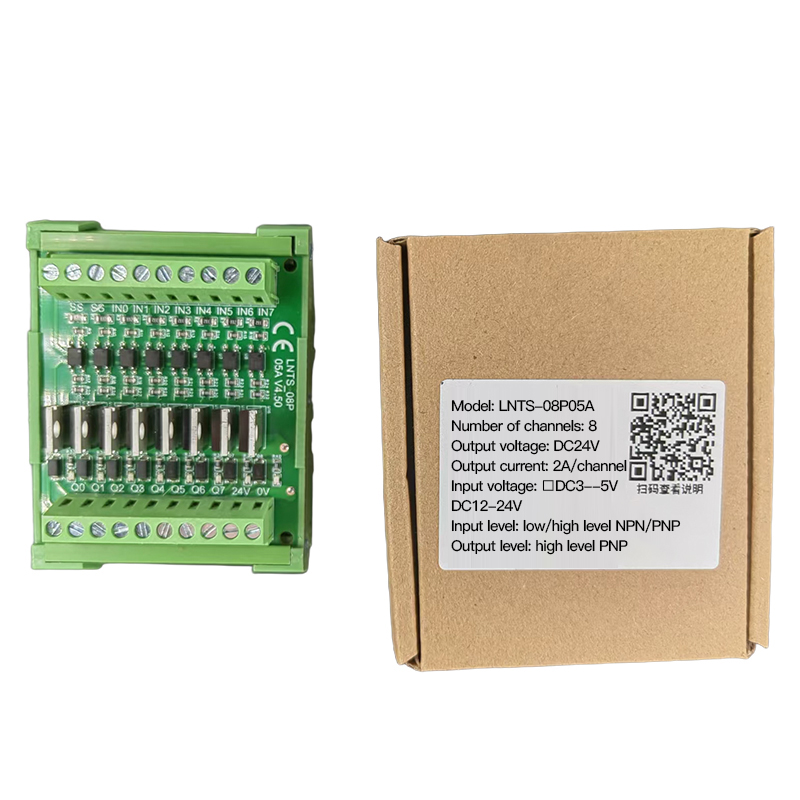

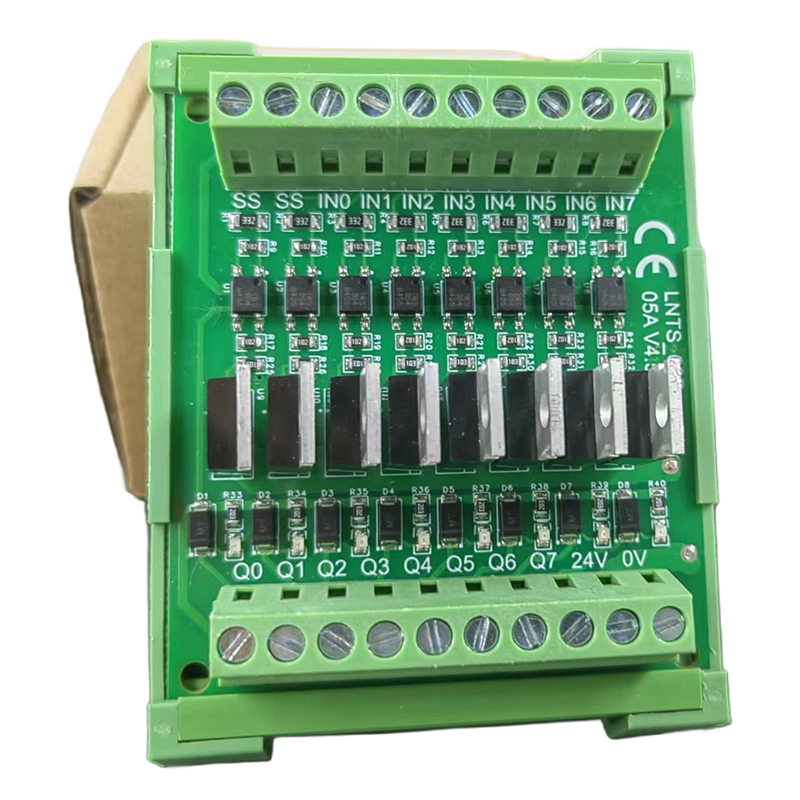

LNTS-08P | 67*89*50 | 8 | DC3.3-5V/DC12V-24V | DC12V-24V | 2A(MAX-5A) | 16A |
LNTS-10P | 67*89*50 | 10 | DC3.3-5V/DC12V-24V | DC12V-24V | 2A(MAX-5A) | 18A |
LNTS-12P | 95*89*50 | 12 | DC3.3-5V/DC12V-24V | DC12V-24V | 2A(MAX-5A) | 20A |
LNTS-14P | 112*89*50 | 14 | DC3.3-5V/DC12V-24V | DC12V-24V | 2A (MAX-5A) | 26A |
LNTS-16P | 129*89*50 | 16 | DC3.3-5V/DC12V-24V | DC12V-24V | 2A(MAX-5A) | 32A |
LNTS-20P | 129*89*50 | 20 | DC3.3-5V/DC12V-24V | DC12V-24V | 2A(MAX-5A) | 40A |
