Product Parameters | |
Input voltage (optional): 3.3V--5V DC | Maximum switching frequency: 2000 times/second |
12V--24V DC | PWM maximum frequency: / |
Output voltage: 24V--220V AC | Total current of a single group: 16A |
Input point trigger current: 12--20mA | Isolation method: Optical isolation |
Output point rated current: 2A (long term) | Isolation voltage: 3000V |
Output point maximum current: 5A (short term) | Input signal type: NPN/PNP universal |
Maximum surge current: 12A | Output voltage type: AC |
Surge voltage: 600V | Flame retardant grade: UL94V_0 |

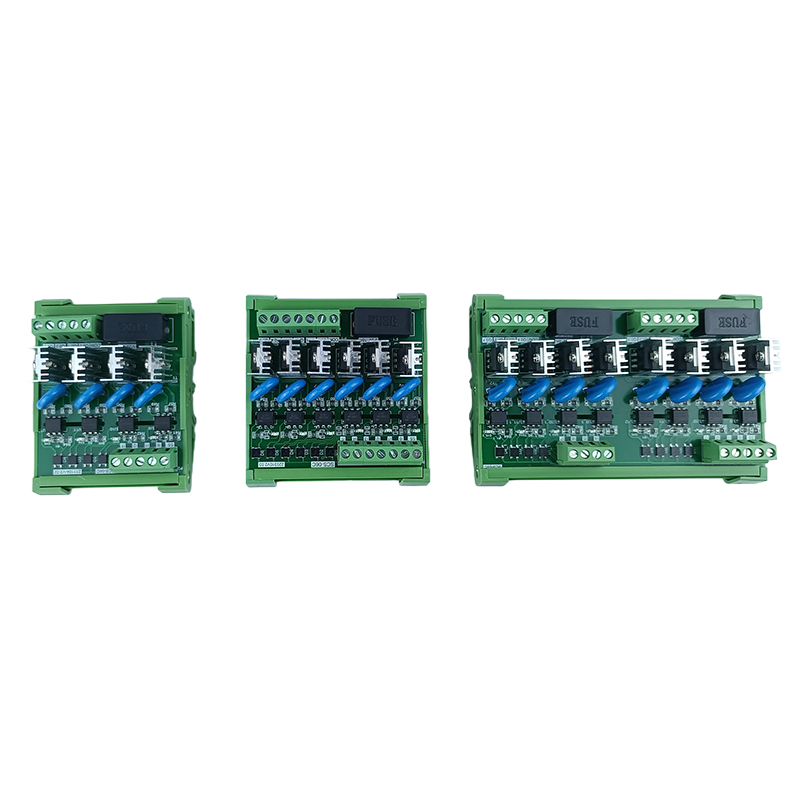

SCS output series DC amplifier board dimensions | ||||
Specifications | model | Length (mm) | Width (mm) | Height (mm) |
4-channel | SCS-04C | 67 | 89 | 50 |
6-channel | SCS-06C | 81 | ||
8-channel | SCS-08C | 129 | ||
10-channel | SCS-10C | 144 | ||
12-channel | SCS-12C | 158 | ||
14-channel | SCS-14C | 206 | ||
16-channel | SCS-16C | 220 | ||
20-channel | SCS-20C | 283 | ||
