name | Parameter Description | model | size | aisle |

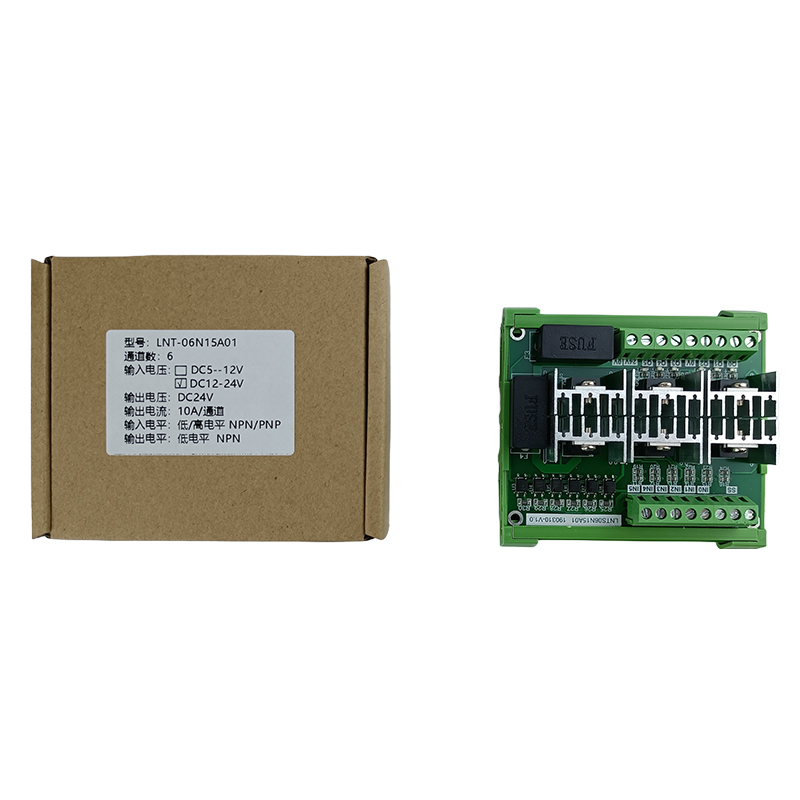

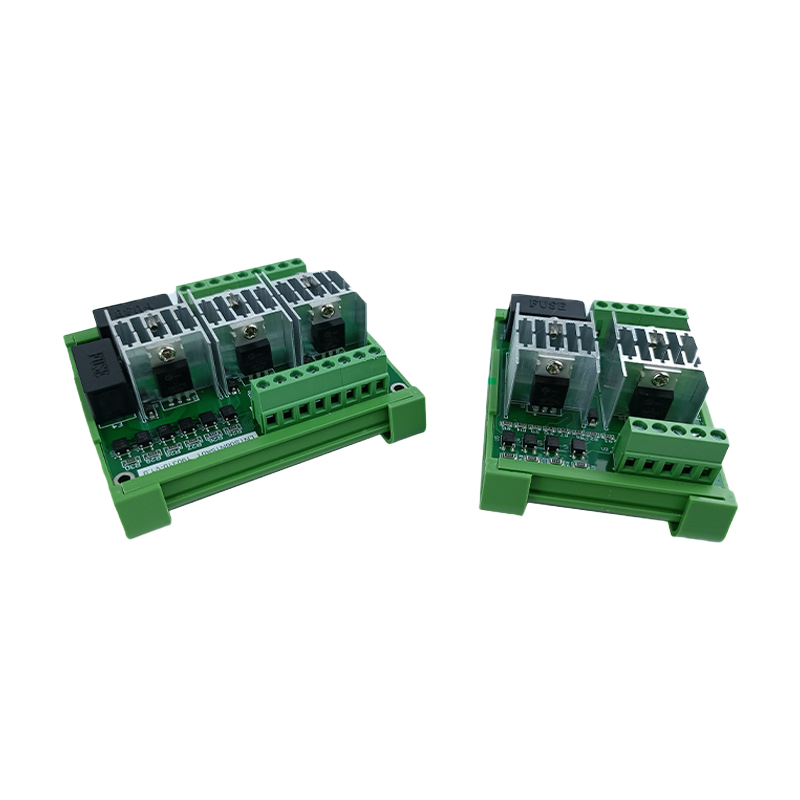

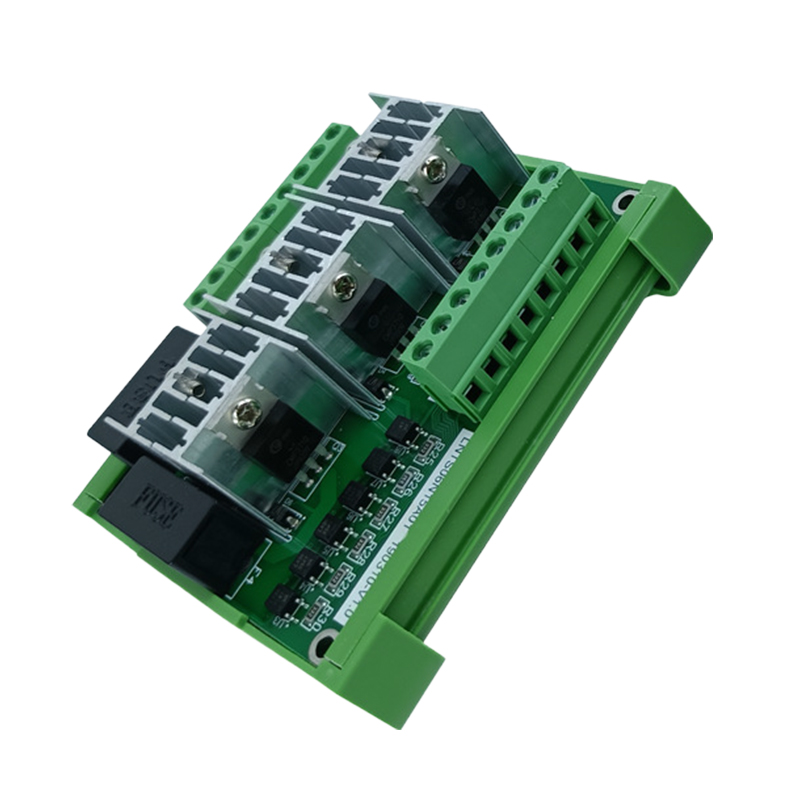

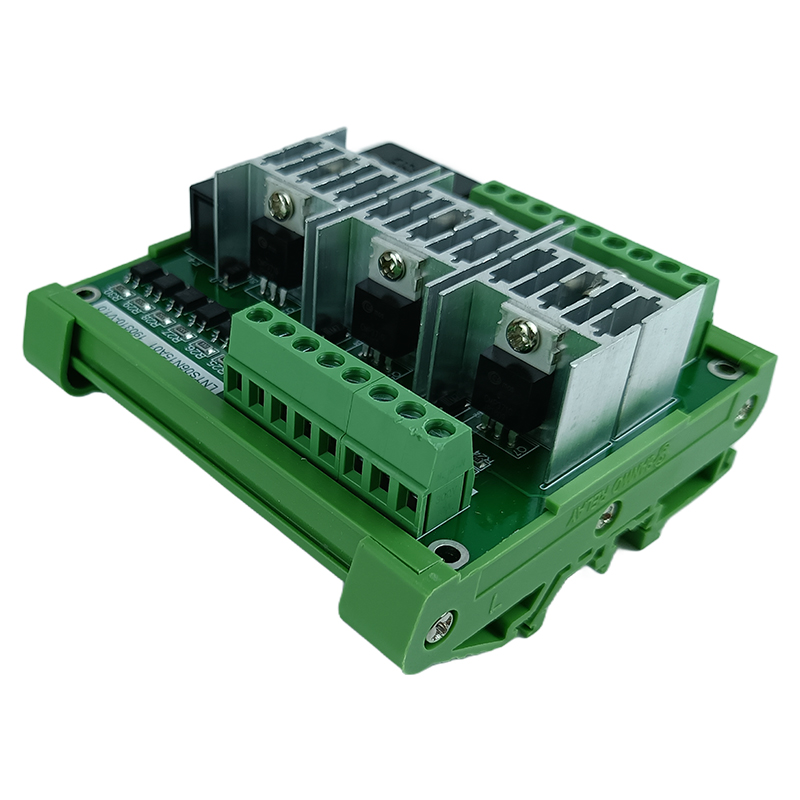

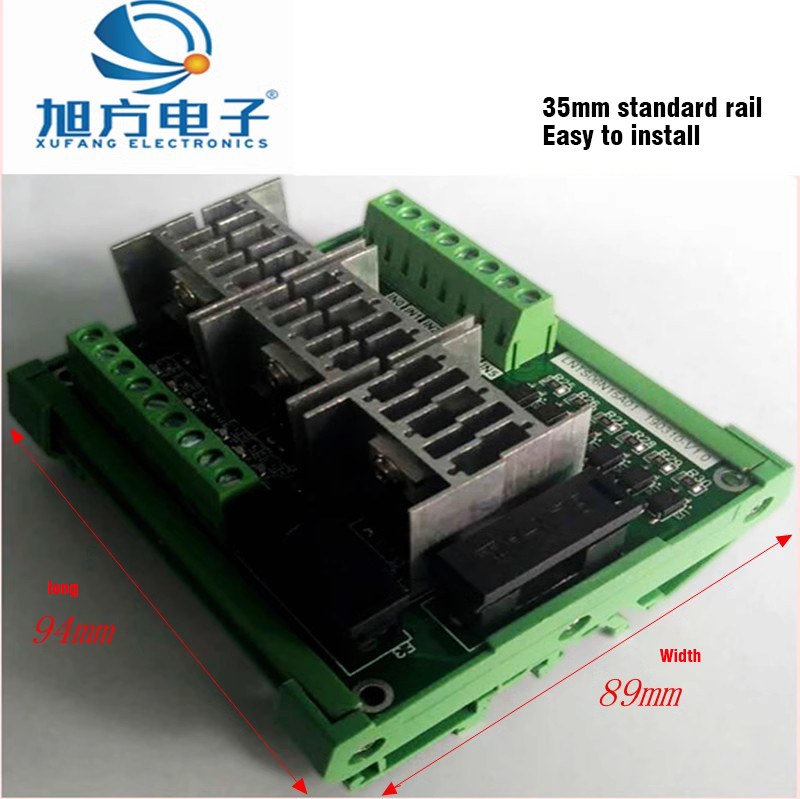

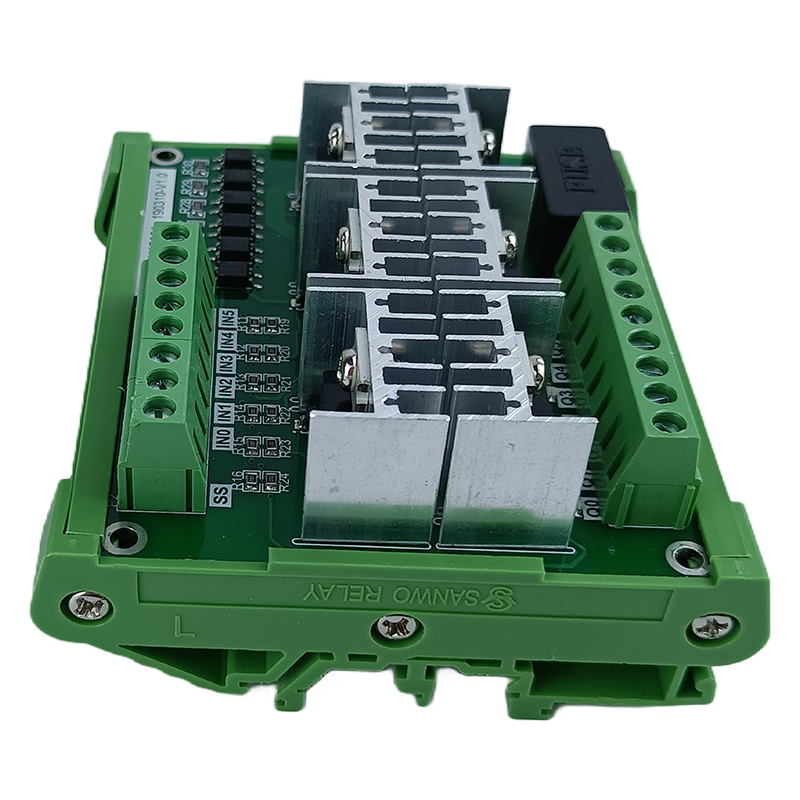

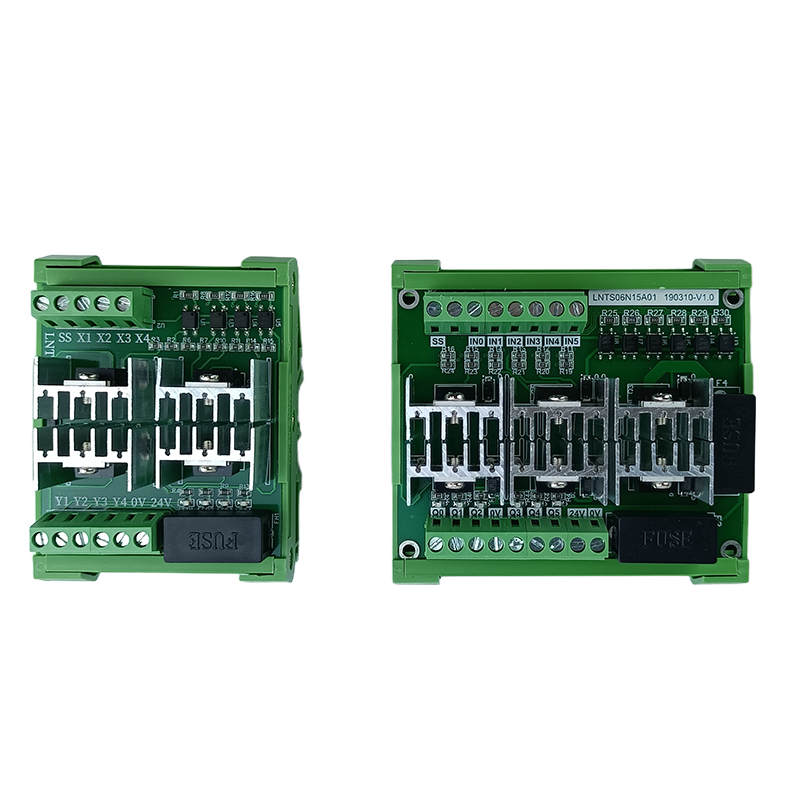

High current NPN output amplifier board | Input voltage (optional): 3.3-5V DC 12-24V DC Input signal type: NPN/PNP universal Input point trigger current: 5-12mA Output voltage: low level/NPN Single output point rated current: 5A (long time) Single output maximum current: 10A (short time) Single maximum surge current: 57A Surge voltage: 100V Maximum switching frequency: 2000 times/second PWM maximum frequency: 500 times/second Isolation voltage: 3000V Isolation method: photoelectric isolation Flame retardant grade: UL94V 0 | LNTS-02N10A LNTS-04N10A LNTS-06N10A LNTS-08N10A | 35*89*50 67*89*50 95*89*50 129*89*50 | 2 4 6 8 |
