Product Parameters | |
Input voltage (optional): | 3.3-5V DC |
12-24V DC | |
Output voltage (negative DC voltage): | 12-24V DC |
Input point trigger current: | 8-12mA |
Single output point rated current: | 2A (long time) |
Single output maximum current: | 5A (short time) |
Single maximum surge current: | 30A |
Surge voltage: | 60V |
Maximum switching frequency: | 20kHz |
PWM maximum frequency: | 500 times/second |
Isolation voltage: | 3000V |
Isolation mode: | Photoelectric isolation |
Input signal type: | NPN/PNP universal |
Flame retardant grade: | UL94V_0 |
Order number and technical specifications | ||||||
model | size | aisle | Input voltage | Output voltage | Single current | Total current |

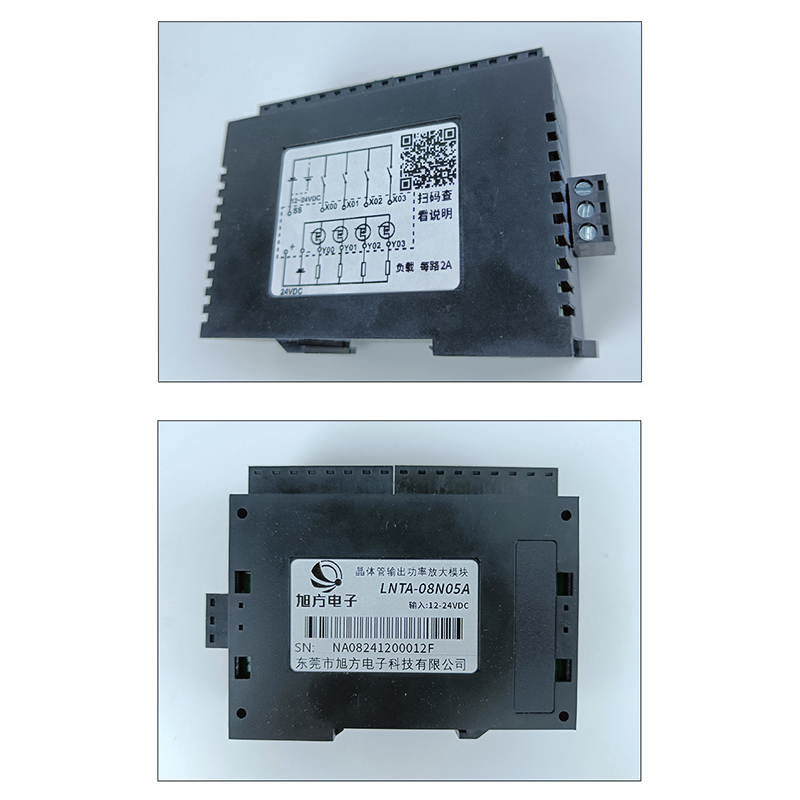

LNTA-04N05A | 32*102*75 | 4 | DC3.3-5V/DC12V-24V | DC12V-24V | 2A(MAX-5A) | 8A |
LNTA-06N05A | 32*102*75 | 6 | DC3.3-5V/DC12V-24V | DC12V-24V | 2A MAX-5A) | 12A |

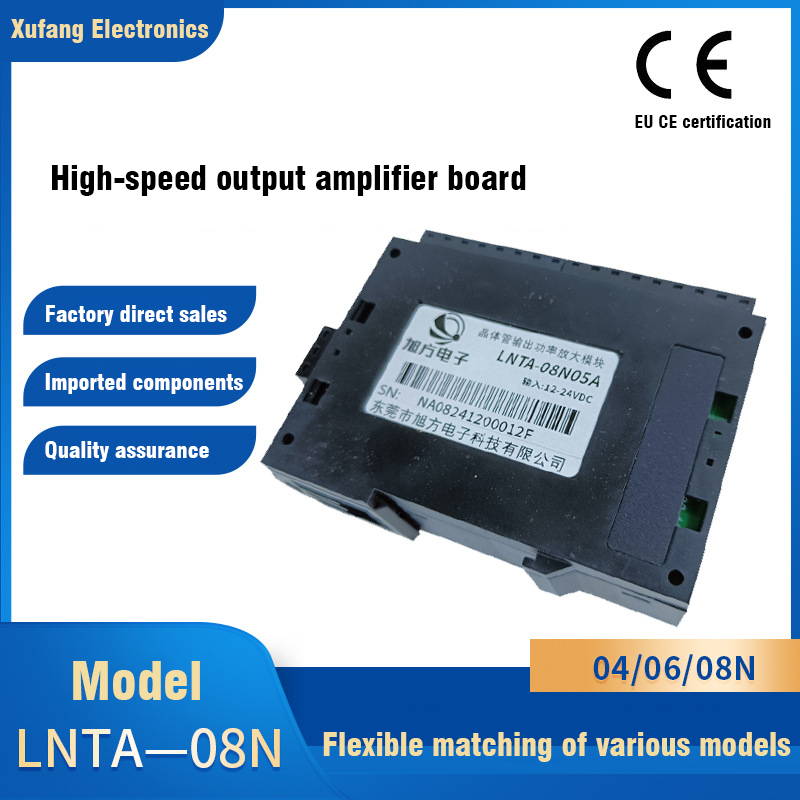

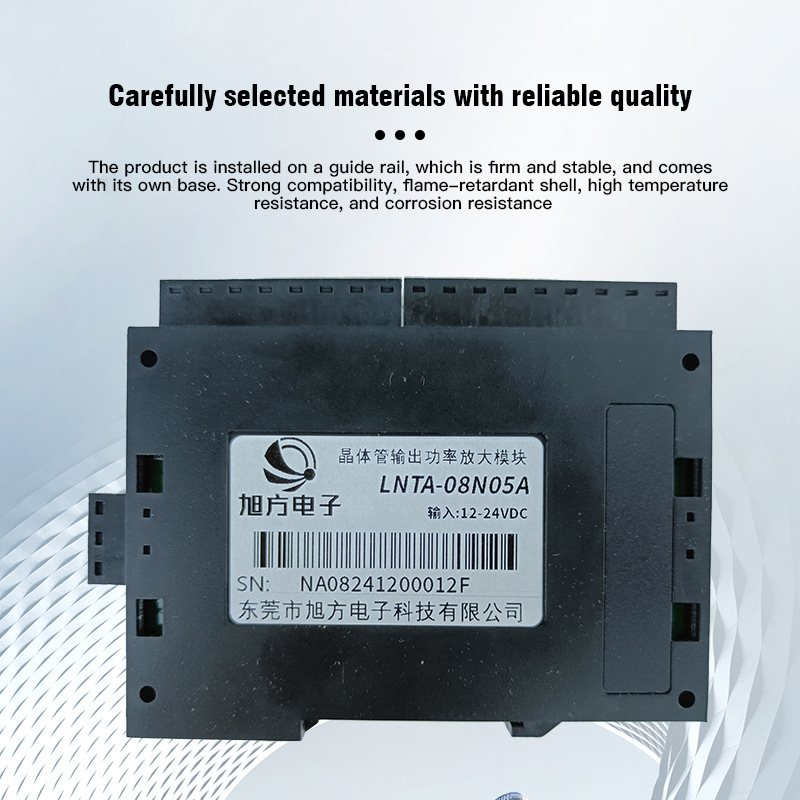

LNTA-08N05A | 32*102*75 | 8 | DC3.3-5V/DC12V-24V | DC12V-24V | 2A(MAX-5A) | 16A |
